Item Code: OLPS-1133-SERIES

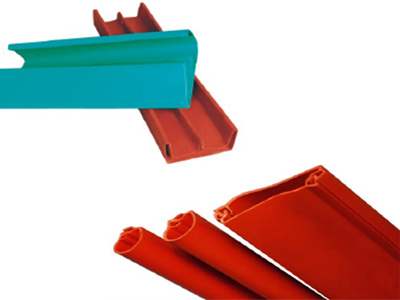

Slot Shape protective connector on bus bar Suitable for application in slot-shape bus bar for protection . The good is qualifiedly produced uniformly by special producing to obtain the best insulation properly. Self – locked protective tubing for medium voltage line cover. Suitable for application on 11KV – 33KV aerial naked wires/conductors. Easy and quick to operate, mainly used in the insulation of naked-wire in substation and overhead conductors.

Dielectric Strength : 217KV/CM@1.27MM
No tracking and erosion resistant.
Tensile Strength : 10MPa min
Ultimate Elongation : 100%min
Thermal Endurance : 105'C min
Water Absorption : 1%MAX AFTER 336 Hrs AT 23'C.
Resistant to bird dropping : Uric Acid for 168 Hrs
